BLDC Blowers

Northland Motor Technologies, designs and manufactures a variety of Brushless DC Electric Motors. These blowers offer variable output for a wide range of vacuum or pressure applications. Standard Brushless DC Electric Motor designs include electric motor drives, coupled to high efficiency impellers, in compact, cost effective packages. Standard models are available in a wide range of input voltages.

The Mercury 5.7″ BLDC blower is available in low and high voltage blowers, in thru-flow and bypass configurations. These Brushless DC Electric Motors provide output pressure up to 169″ H2O and flows up to 320 CFM. With this wide range of standard and customization for different air moving solutions, we have a blower that’s right for your application.

We provide customized Brushless DC Electric Motor and Blower solutions, and many direct replacements for the Windjammer product offering. See our cross reference guide here.

The Mercury family of blowers can be found in many different applications including:



Medical

Business

Material Handling

Fuel Cell

Air Sampling

Hold Down Applications

Cooling Applications

Paper Separation

Fume Extraction



ThruFlow

Standard Flow

Up to 60 CFM

120 or 240V

1, 2 or 3 Stage

Inlet 1.25″

200-500W

ThruFlow

High Flow

Up to 107 CFM

120 or 240V

1,2, or 3 Stage

Inlet 1.75″

200-500W

Bypass

Standard Flow

Tangential Bypass Blower Exterior

Up to 80 CFM

120 or 240V

1,2, or 3 Stage

Inlet 1.25″

200-1300W

Bypass

Ultra Flow

Tangential Bypass Blower Exterior

Up to 320 CFM

240V

1,2, or 3 Stage

Inlet 1.75″-2.25″

500W-1800W

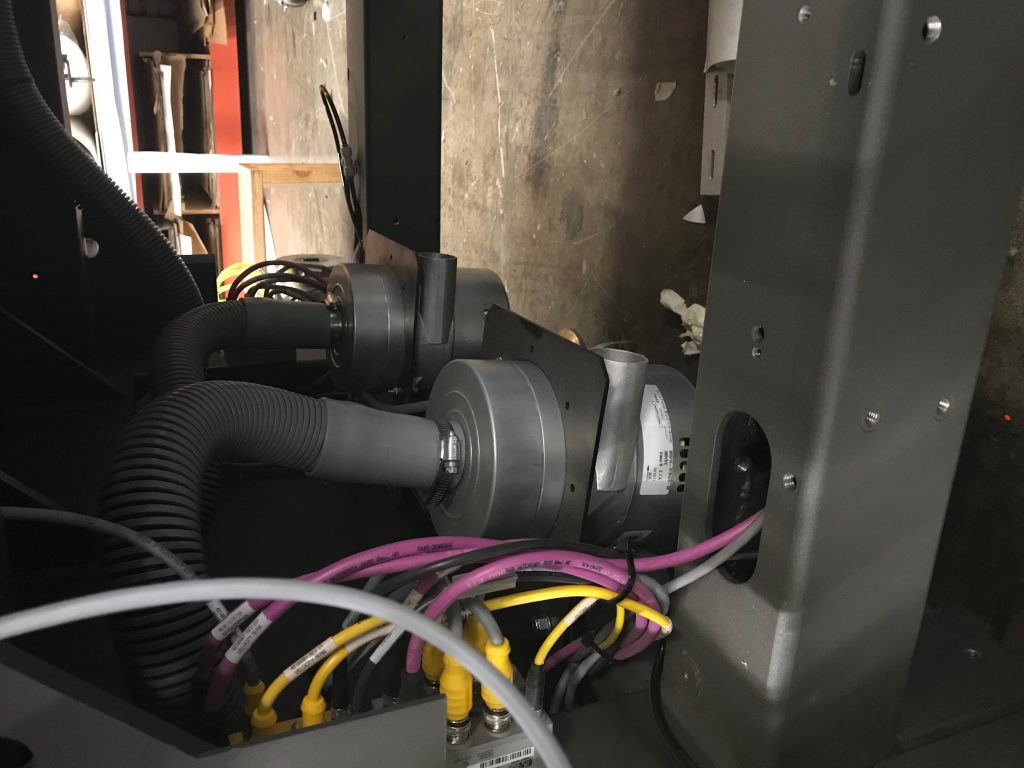

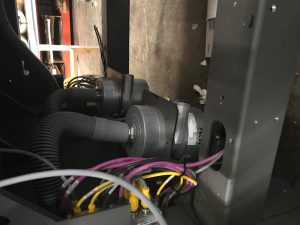

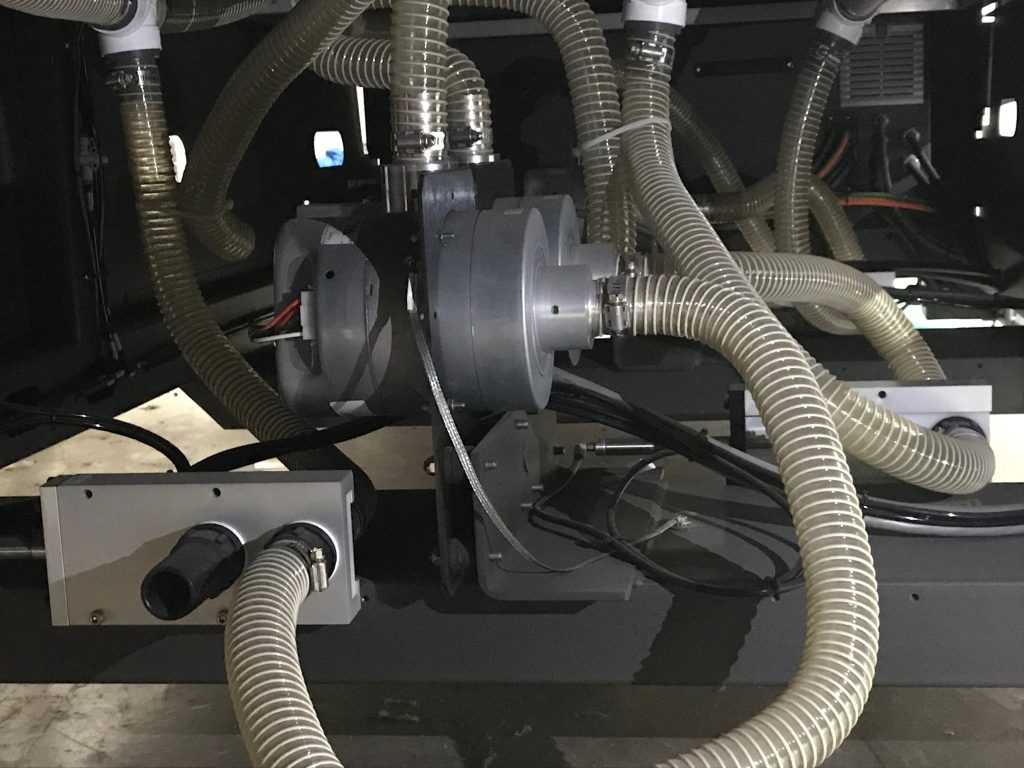

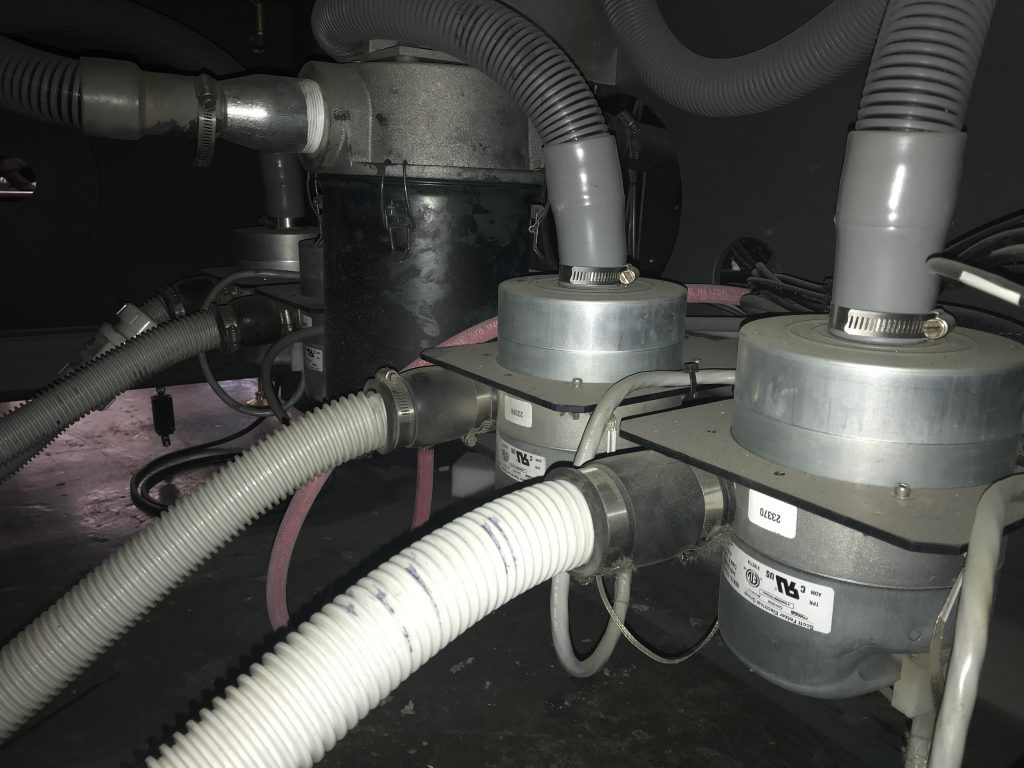

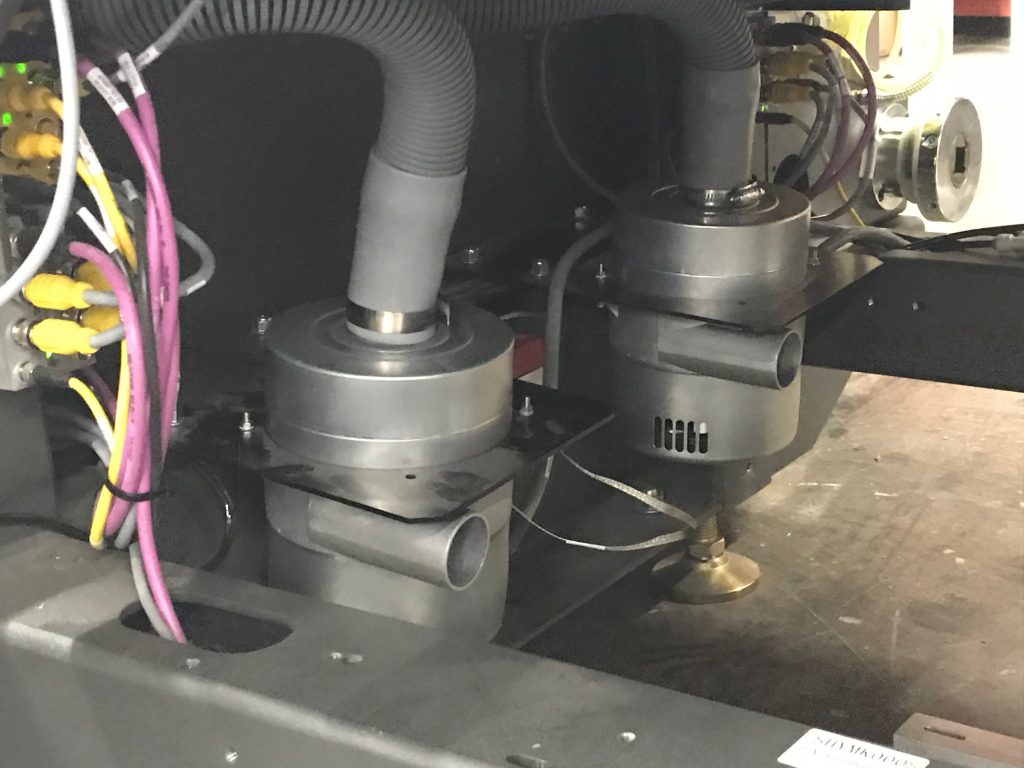

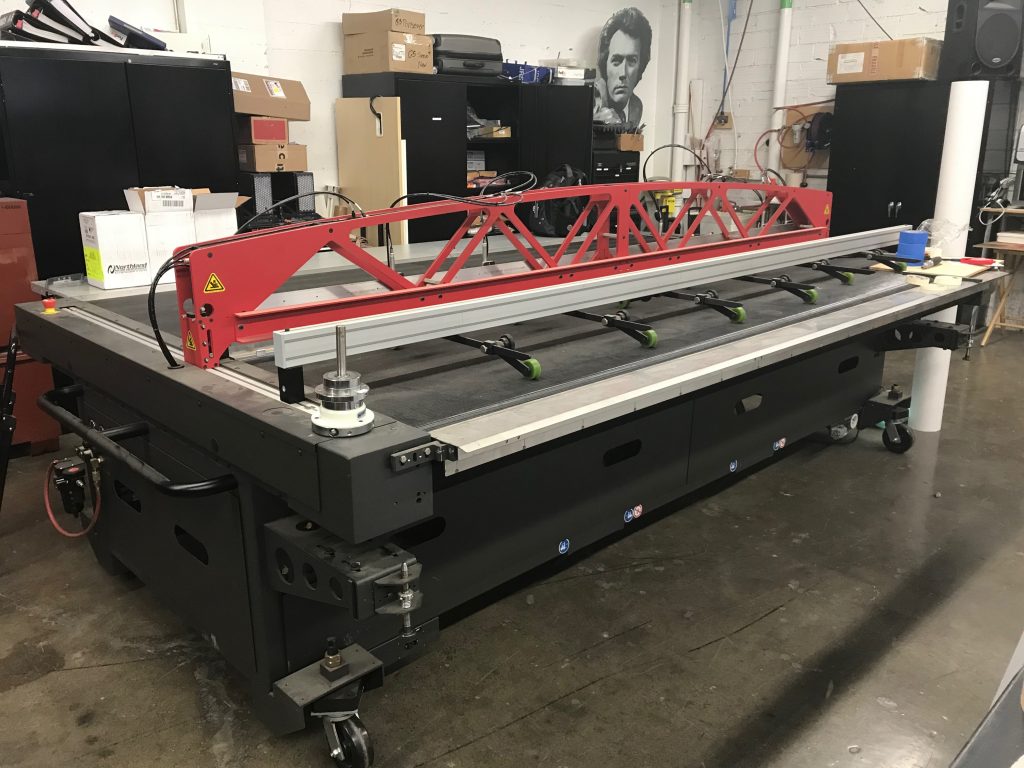

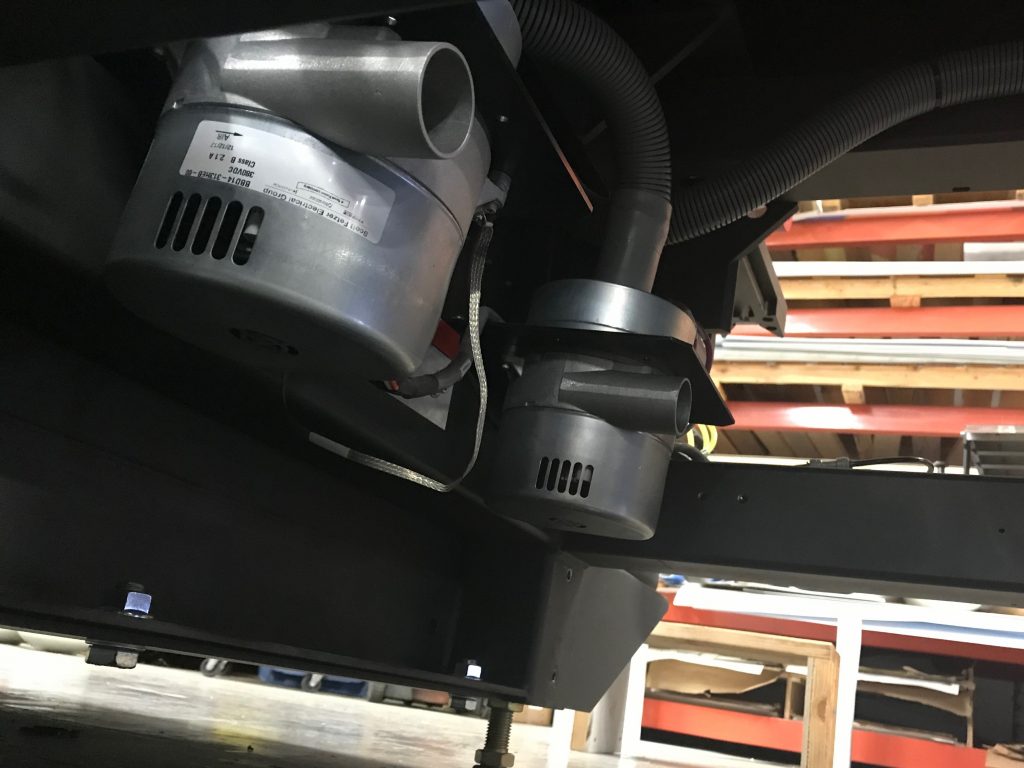

Example of our Brushless DC Blower Installed on a large digital print machine
